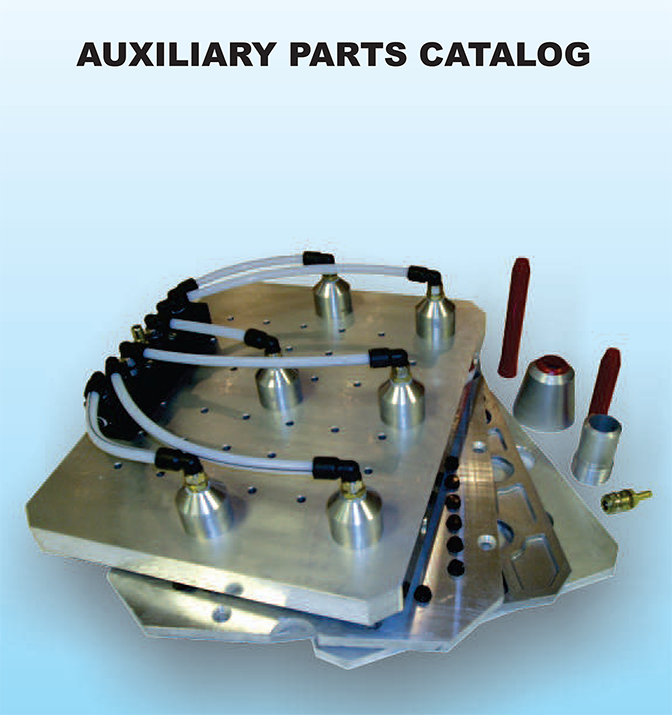

AUXILIARY PARTS CATALOG

Auxiliary Parts for Hunter Matchplate Molding Machines and Mold Handling Systems

Welcome to Hunter Foundry Machinery Corporation's Interactive Auxiliary Parts Catalog. To turn the page click the arrows located in the upper left hand corner of the screen, or you can click on the mini menu to go the section of the catalog that you're most interested. Just with swipe of the finger on a mobile or tablet device the pages will scroll for your convenience.

Customers can select from the company's full range of replacement parts, in our $12 million inventory. For assistance with parts call us at 847-397-5111, or fax your order to 847-303-6717. If you have questions that need to be answered, please see the "Contact" section of this website, to submit a detailed request or purchase order please email parts@hunterfoundry.com.

An electronic copy of the Auxiliary Parts Catalog can be downloaded here.

Hunter Foundry Machinery's Auxilliary Parts Catalog

BASINS

1. The New Ultra-Clean Basin Former Design:

The new patent applied for system uses the combination of a vented ( and optionally heated) squeeze board, multi-location pre-hosed air injection and an aluminum basin with a replaceable polyurethane liner. Basin location charges are made quickly and easily by simply exchanging the existing basin with the new locations existing stop off.

The ULTRA-CLEAN basin former will provide a clean basin and sprue as well as a clean top of mold. This system can be adapted to all existing Hunter HMP, XL AND HLM series machines.

2. The Sprue Slug Ejector Design:

No longer available for retro-fit: Replaced by the Ultra-Clean Basin Former Design. To order parts for existing systems, see parts illustration and parts listings starting here.

3. The Conventional Design:

A polyurethane basin make the pouring impression in the mold, while an external nozzle blows out the impression and the top of the mold. The sprue slug is pushed through the basin and sits on top of the squeeze board.

Hunter's Sprue Ejector Conventional Design

ULTRA-CLEAN BASIN FORMER SUPPLIES: HMP-10 & 20, XL1419, XL2024, HLM10 & 20

The Ultra-Clean Basin Former Supplies are also for XL1419 & XL2024, HLM-10 & HLM-20, NON-C, C, D, E, G, H

Item No.	Hunter Part No.		Description					Quanity Required
	HMP-10 XL1419 HLM-10	HMP-20 XL2024 HLM-20
	37498	37468	3/4" Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
	37499	37469	7/8" Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
	37500	37470	1" Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
	37501	37471	1-1/4 " Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
	N/A	37472	1-1/2" Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
4	42937		Slotted Vents					40
5	76992		Hose Connector					1
6	80379		Air Jet Head					6
7	63465		3/8" Teflon Tubing					108"
8	10680		Stop Off					5
9	80439		1/4-20NC X 2-1/2 HH Cap Screw					2
10	76191		Pushlok Male Elbow					12
11	44744		Male Half Coupling
Item No.	Description		Size					Quanities Required
			3/4"	7/8"	1"	1-1/4"	1-1/2"
12	Basin Former	Deep	76941	76943	76945	80297	76947	1
		Shallow	83332	83334	83336	83336	83338
13	Basin Liner		45808	45809	45705	45810	45811	1
14	Basin Former Insert	Deep	76942	76944	76946	80298	76948	1
		Shallow	83333	83335	83329	83337	83339
15	16564		Hollow Hex Plug					3
17	16370		1/4" Lock Washer					2
Note: Items 4 through 15 are included in the Ultra Clean Basin Former Kit. * - Quanities shown are for piping basins in Squeeze Board.

ULTRA-CLEAN BASIN FORMER SUPPLIES: HMP-32 & XL2024

The Ultra-Clean Basin Former components are shown assembled on a squeeze board below. The numbers on the drawings refer to the parts lists.

Item No.	Hunter Part No.		Description					Quanity Required
	XL2024 HLM-20	HMP-32 HLM-30
	37483	TBD	1" Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
	37484	37581	1-1/4 " Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
	37485	TBD	1-1/2" Ultra-Clean Basin Former Kit: Complete with Squeeze Board					1
4	42937		Slotted Vents					40
5	76992		Hose Connector					1
6	80379		Air Jet Head					6
7	63465		3/8" Teflon Tubing					108"
8	10680		Stop Off					5
9	80439		1/4-20NC X 2-1/2 HH Cap Screw					2
10	76191		Pushlok Male Elbow					12
11	44744		Male Half Coupling
Item No.	Description		Size					Quanities Required
			3/4"	7/8"	1"	1-1/4"	1-1/2"
12	Basin Former	Deep	76941	76943	76945	80297	76947	1
		Shallow	83332	83334	83336	83336	83338
13	Basin Liner		45808	45809	45705	45810	45811	1
14	Basin Former Insert	Deep	76942	76944	76946	80298	76948	1
		Shallow	83333	83335	83329	83337	83339
15	16564		Hollow Hex Plug					3
17	16370		1/4" Lock Washer					2
Note: Items 4 through 15 are included in the Ultra Clean Basin Former Kit. * - Quanities shown are for piping basins in Squeeze Board. + - Note used on the HMP-32 Ultra Clean

SPRUE SLUG EJECTOR DESIGN: HMP-10 & 20

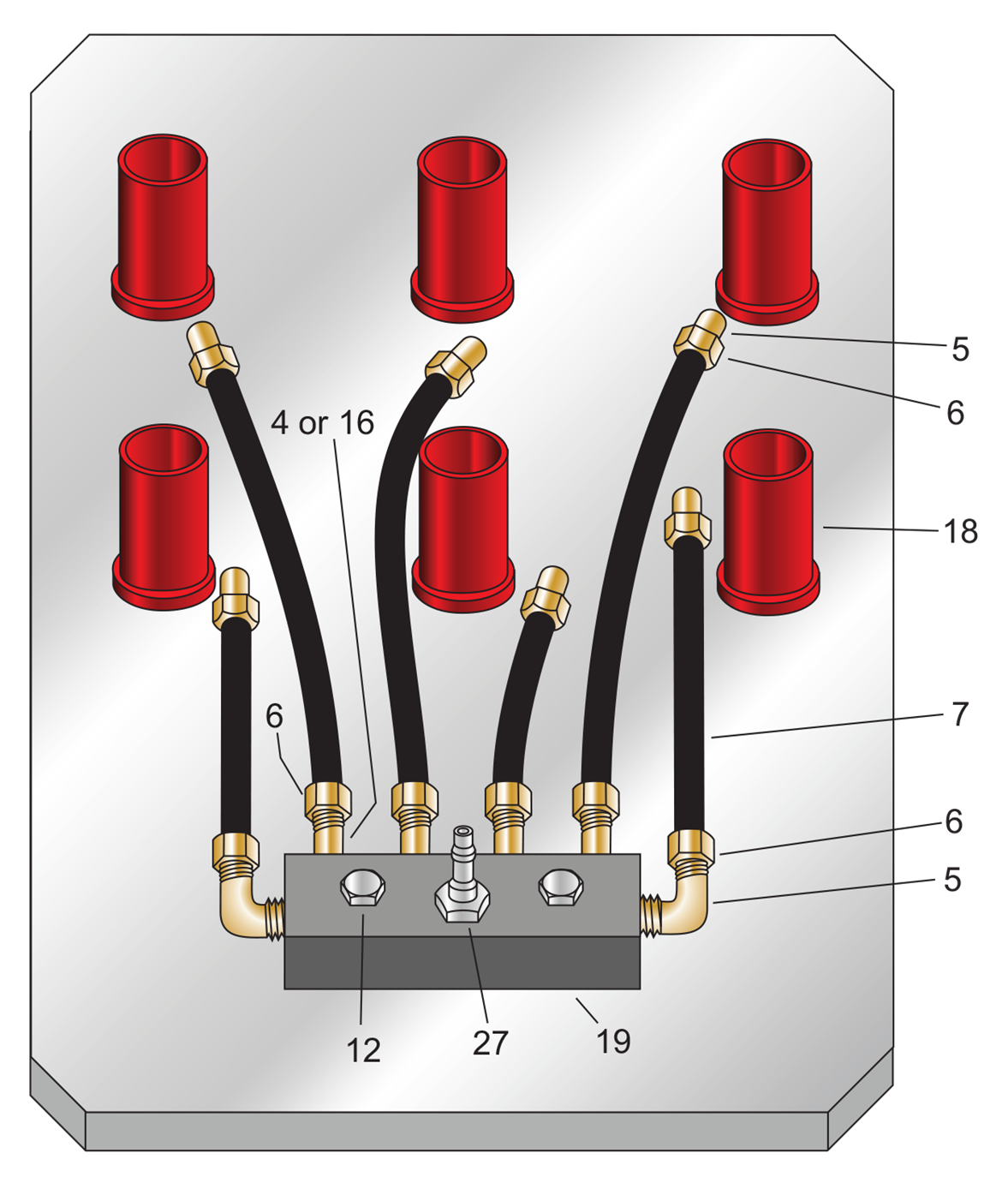

The Sprue Slug Ejector components are shown assembled on a squeeze board below. The numbers on the drawings refer to the parts lists.

QUICK CHANGE BASIN SUPPLIES FOR NON-C, C, D, E, G & H	Item No.	Hunter Part No.	Description		Quanity Required
	Item No.	Hunter Part No.	Description		HV-10	HV-20	HLH-10 HMH-210	HLH-20 HMH-220
	4	10394	Male Connector			4		4
	5	10395	90 Degree Male Elbow		8	8	8	8
	6	10397	3/8" Swivel Female Fitting		12	12	12	12
	7	10412	3/8" Air Hose		72	72	72	72
	8	21260	5/8" Air Hose		25	25	25	25
	9	11250	1/2" Swivel Female Fitting		1	1	1	1
	10	16432	1/2" Hose Clamp		1	1	1	1
	11	13935	O-Ring		5	5	5	5
	12	16004	1/4-20NC X 1-1/2" Hex Cap Screw		2	2	2	2
	13	16020	3/8-20NC X 1-3/4" Hex Cap Screw		4	4	4	4
	14	64522	Insert Assembly - Cover Only		5	5	5	5

	15	16355	3/8" Flat Washer		4	4	4	4
	16	19318	45 Degree Male Elbow		4		4
	17	39896	Basin Cover		5	5	5	5
	18	64171	Connecting Sleeve		6	6	6	6
	19	41302	Squeeze Board Hose Connector		1	1	1	1
	20	41891	Sand Return Tube			6		6
	21	46175	Sand Return Tube Bracket		1		1
	22	44147	1" ID X 28" Hose Assembly			6		4
	23	44308	1" ID X 35" Hose Assembly					2
	24	44405	3/4" ID X 31-1/2" Hose Assembly		3		4
	25	44419	3/4" ID X 28" Hose Assembly		3		2
	26	44743	Half Coupling		1	1	1	1
	27	44744	Male Half Coupling		1	1	1	1
	Item No.	Description		Size & Part Number
	Item No.	Description		3/4"	7/8"	1"	1-1/4"	1-1/2"
	28	Basin		45817	45818	45819	45820	45821
	29	7/8 Basin Liner		45808	45809	45705	45810	45811
	30	7/8 Basin Insert		45812	45813	45814	45815	45816
	Item No.	Hunter Part No.	Description		Quanity Required
	Item No.	Hunter Part No.	Description		HV-10	HV-20	HLH-10 HMH-210	HLH-20 HMH-220
	31	45222	Quick Change Basin Drill Fixture		1	1	1	1
	32	64906	Screw, Hi-Torque: Basin Only		3	3	3	3
	33	18056	Male Connector		1	1	1	1
		16592	1/4-20NC X 3/4 Butt HD Cap Screw		10	10	10	10
		64592	Spinner Handle W/12 Point Socket		1	1	1	1

SPRUE SLUG EJECTOR DESIGN: HMP-32

The Sprue Slug Ejector components are shown assembled on a squeeze board below. The numbers on the drawings refer to the parts lists.

QUICK CHANGE BASIN SUPPLIES FOR NON-C, C, D, E, G & H	Item No.	Hunter Part No.	Description	Quanity Required
				HV-32		HLH-32 HMH-32
				Deep	Shallow	Deep	Shallow
	4	10394	Male Connector		4		4
	5	10395	90 Degree Male Elbow	8	8	8	8
	6	10397	3/8" Swivel Female Fitting	12	12	12	12
	7	10412	3/8" Air Hose	72	72	72	72
	8	21260	5/8" Air Hose	25	25	25	25
	9	11250	1/2" Swivel Female Fitting	1	1	1	1
	10	16432	1/2" Hose Clamp	1	1	1	1
	11	13935	O-Ring	5	5	5	5
	12	16004	1/4-20NC X 1-1/2" Hex Cap Screw	2	2	2	2
	13	16020	3/8-20NC X 1-3/4" Hex Cap Screw	4	4	4	4
	14	64522	Insert Assembly - Cover Only	5	5	5	5
	15	16355	3/8" Flat Washer	4	4	4	4
	16	19318	45 Degree Male Elbow	4		4
	17	39896	Basin Cover	5	5	5	5
	18	64171	Connecting Sleeve	6	6	6	6
	19	41302	Squeeze Board Hose Connector	1	1	1	1
	20	41891	Sand Return Tube		6		6
	21	46175	Sand Return Tube Bracket	1		1
	22	44147	1" ID X 28" Hose Assembly		6		4
	23	44308	1" ID X 35" Hose Assembly				2
	24	44405	3/4" ID X 31-1/2" Hose Assembly	3		4
	25	44419	3/4" ID X 28" Hose Assembly	3		2
	26	44743	Half Coupling	1	1	1	1
	27	44744	Male Half Coupling	1	1	1	1
	Item No.	Description		Size & Part Number
	Item No.	Description		7/8"	1"	1-1/4"	1-1/2"
	28	Basin		45818	45819	45820	45821
	29	7/8 Basin Liner		45809	45705	45810	45811
	30	7/8 Basin Insert		45813	45814	45815	45816
	Item No.	Hunter Part No.	Description	Quanity Required
				HV-32		HLH-32 HMH-232
				Deep	Shallow	Deep	Shallow
	31	45222	Quick Change Basin Drill Fixture	1	1	1	1
	32	64906	Screw, Hi-Torque: Basin Only	3	3	3	3
	33	18056	Male Connector	1	1	1	1
		16592	1/4-20NC X 3/4 Butt HD Cap Screw	10	10	10	10
		64592	Spinner Handle W/12 Point Socket	1	1	1	1

CONVENTIONAL DESIGN

Illustration	Description	Recommended Quanity for 1st Order			Part No.
Illustration	Description	HMP10 XL1419 HLM-10	HMP-18/20 XL2024 HLM-20	HMP-30/32 XL2430 HLM-30	Part No.
	1" Diameter Shallow Basin	4	1	0	10236
	7/8" Diameter Shallow Basin	2	1	0	10238
	3/4" Diameter Shallow Basin	1	0	0	10240
	5/8" Diameter Shallow Basin	0	0	0	11892
	1/2" Diameter Shallow Basin	0	0	0	11891
Deep Basin with Flat Side
	1-1/4" Diameter Deep Basin	1	4	1	11316
	1" Diameter Deep Basin	2	4	1	10676
	7/8" Diameter Deep Basin	2	4	0	10677
	3/4" Diameter Deep Basin	0	0	0	10678
	2" Diameter Deep Basin	0	1	4	14424
	1-3/4" Diameter Deep Basin	0	1	4	14423
	1-1/2" Diameter Deep Basin	0	1	4	14422

CONVENTIONAL DESIGN: INSERTS

ILLUSTRATION	Description	Recommended Quanity for 1st Order			Part No.
ILLUSTRATION	Description	HMP10 XL1419 HLM-10	HMP-18/20 XL2024 HLM-20	HMP-30/32 XL2430 HLM-30	Part No.

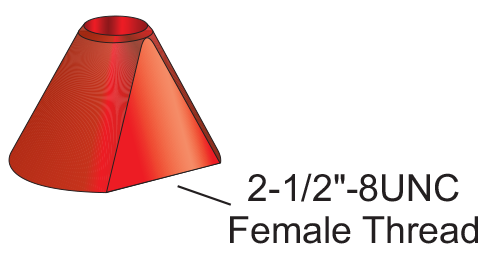

	Threaded Insert (To mount female thread basin into 2-1/2" drilled hole)	0	0	4	14476

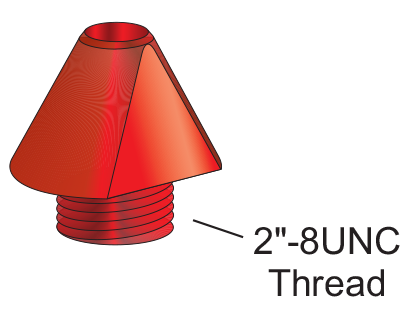

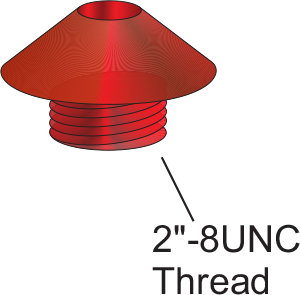

	Adapter Insert (To mount female thread basin into 2-8UNC" threaded hole) Note: Used on 1-1/2" Diameter Deep Basin	0	1	4	14477
	Threaded Insert (To mount female thread basin into 2-1/2" drilled hole, allowing alignment of flat side if required.)	0	0	4	14478

POURING BASIN ARRANGEMENT: Shallow & Deep Basin

POURING BASIN ARRANGEMENT: Deep Basin & Basin Liner

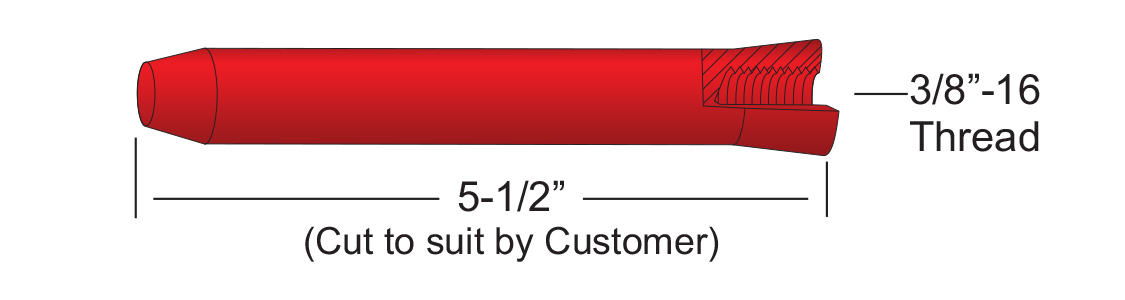

SPRUES

Sprue Diameter	Recommended Quanity for 1st Order
Sprue Diameter	HMP-10 XL-1419 HLM-10	HMP-18 HMP-20 XL-2024 HLM-20	HMP-26 HLM-26	HMP-30 HMP-32 XL-2430 HLM-30	Part No.
1"	4	0	0	0	10235
7/8"	4	0	0	0	10237
3/4"	2	0	0	0	10239

Sprue Diameter	Recommended Quanity for 1st Order
Sprue Diameter	HMP-10 XL-1419 HLM-10	HMP-18 HMP-20 XL-2024 HLM-20	HMP-26 HLM-26	HMP-30 HMP-32 XL-2430 HLM-30	Part No.
2"	0	1	1	0	14433
1-3/4"	0	1	1	0	14432
1-1/2"	0	1	1	0	14210
1-1/4"	1	2	2	0	11320
1"	0	2	2	0	11319
7/8"	0	2	2	0	11318

SQUEEZE BOARD ACCESSORIES:

Illustration	Description	Recommended Quanity for 1st Order
Illustration	Description	HMP-10 XL1419 HLM-10	HMP-18 HMP-20 XL2024 HLM-20	HMP-26 HLM-26	HMP-30 HMP-32 XL2430 HLM-30	Part No.

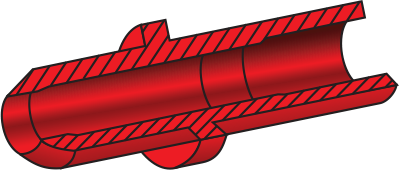

	1-1/4" Diam. Basin Liner	1	4	0	1	11317
	1" Dia. Basin Liner	2	2	0	1	10825
	7/8" Dia. Basin Liner	2	2	0	0	10824
	3/4" Dia.. Basin Liner	1	0	0	0	10823
	1/2" Dia. Basin Liner	2	0	0	0	11745
	Squeeze Board Stop-Off (To plug the sprue basin holes in the squeeze board.)	1	1	0	1	10680
	Stop-Off Adapter (Adapts stop-off to HMP-30.)	0	0	0	1	14577
	Blow-Off Nozzle	12	12	0	12	10209

SQUEEZE BOARD ACCESSORIES:

Illustration	Description	Recommended Quanity for 1st Order
Illustration	Description	HMP-10 XL1419 HLM-10	HMP-18 HMP-20 XL-2024 HLM-20	HMP-26 HLM-26	HMP-30 HMP-32 XL2430 HLM-30	Part No.
	Male Half-Coupling 3/8" Hose	12	12	0	12	10233
	Male Half-Coupling 1/2" - 5/8" Hose	12	12	0	12	44744

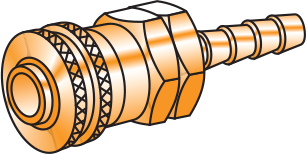

	Female Half-Coupling 3/8" Hose	1	1	0	1	10251
	Female Half-Coupling 1/2" - 5/8" Hose	1	1	0	1	44743

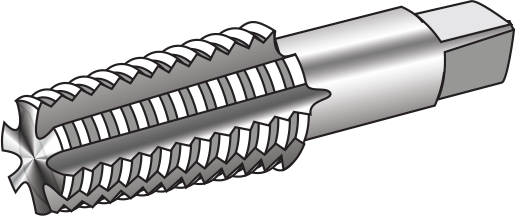

	2" - 8" Thread Tap (To tap pouring basin threads into the squeeze board.)	1	1	0	1	12293

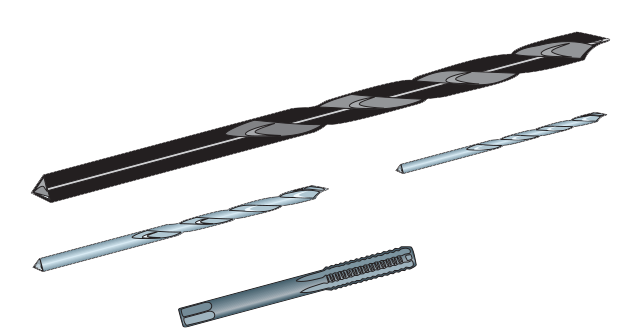

	SAE Tool Kit (Drill bits and taps for setting up squeeze boards in countries without SAE tools.)					27853 Conversion Design
						27854 Sprue Slug Eject Design

SQUEEZE BOARDS AND BOTTOM BOARDS

Illustration	Description	Boards for all model machines as noted:
Illustration	Description	10	18	20	26	30	32

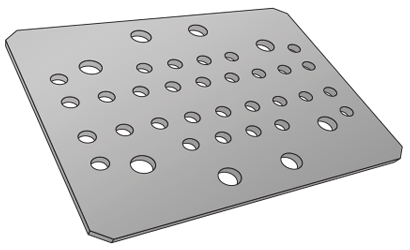

	Squeeze Board (Quick Change)	Part No. 11827	Part No. 28878	Part No. 11153	Part No. 76244	Part No. 14131 76560 (XL)	Part No. 18884
	Squeeze Board (Quick Change)	22 (10.0)	37 (16.8)	54 (38.1)	58.9 (26.7)	65 (29.6)	93 (42.3)
	Approx Weight Lbs. (Kg)	22 (10.0)	37 (16.8)	54 (38.1)	58.9 (26.7)	65 (29.6)	93 (42.3)

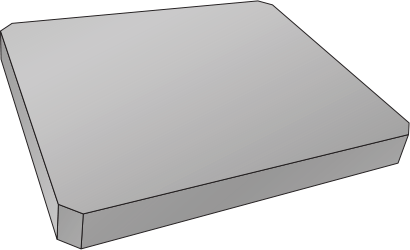

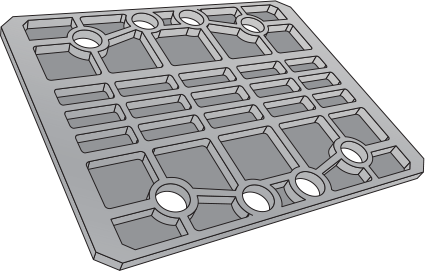

	Bottom Board (Alum. Casting)	Part No. 45506		Part No. 11015
	Approx Weight Lbs. (Kg)	11.5 (5.2)		27 (12.3)
	Bottom Board (Alum. Ribbed) For HMH Systems with manual board return Approx. Weight Lbs. (Kg)	Part No. 45506 8 (3.6)
	Bottom Board (Flat Alum. Precision Plate) For HMH Systems with auto board returns and All HV Systems	Part No. 12657	Part No. 28882	Part No. 12725	Part No. 69873	Part No. 14245 (30) 28288 (30C) 73009(XL2430 Shallow) 83075 (XL2430 Deep)	Part No. 49593(32) 49593(32C) 33719(32C Shallow) 61842(Mold Sensor Deep) 66819 (Mold Sensor Deep)
	Approx Weight Lbs. (Kg)	11 (5.0)	17 (7.7)	21 (9.6)
	Matchplate Drill Fixture with Bushings	Part No. 10787	Part No. 28881	Part No. 11152	Part No.	Part No. 14521	Part No. 19363
	Approx. Weight Lbs. (Kg)	28 (12.7)		35 (15.9)			100 (45.5)

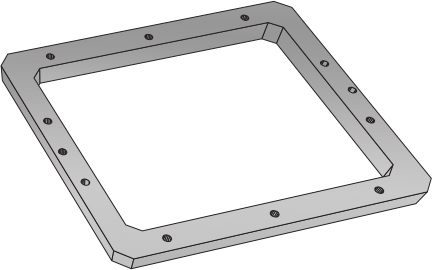

	Fixture, Pattern Plate (Guage)	Part No. 80966	Part No.	Part No. 76420	Part No.	Part No.	Part No.
	Approx. Weight Lbs. (Kg)			4.3 (1.89)

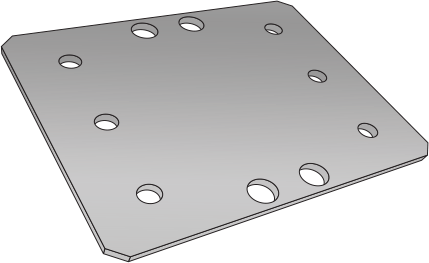

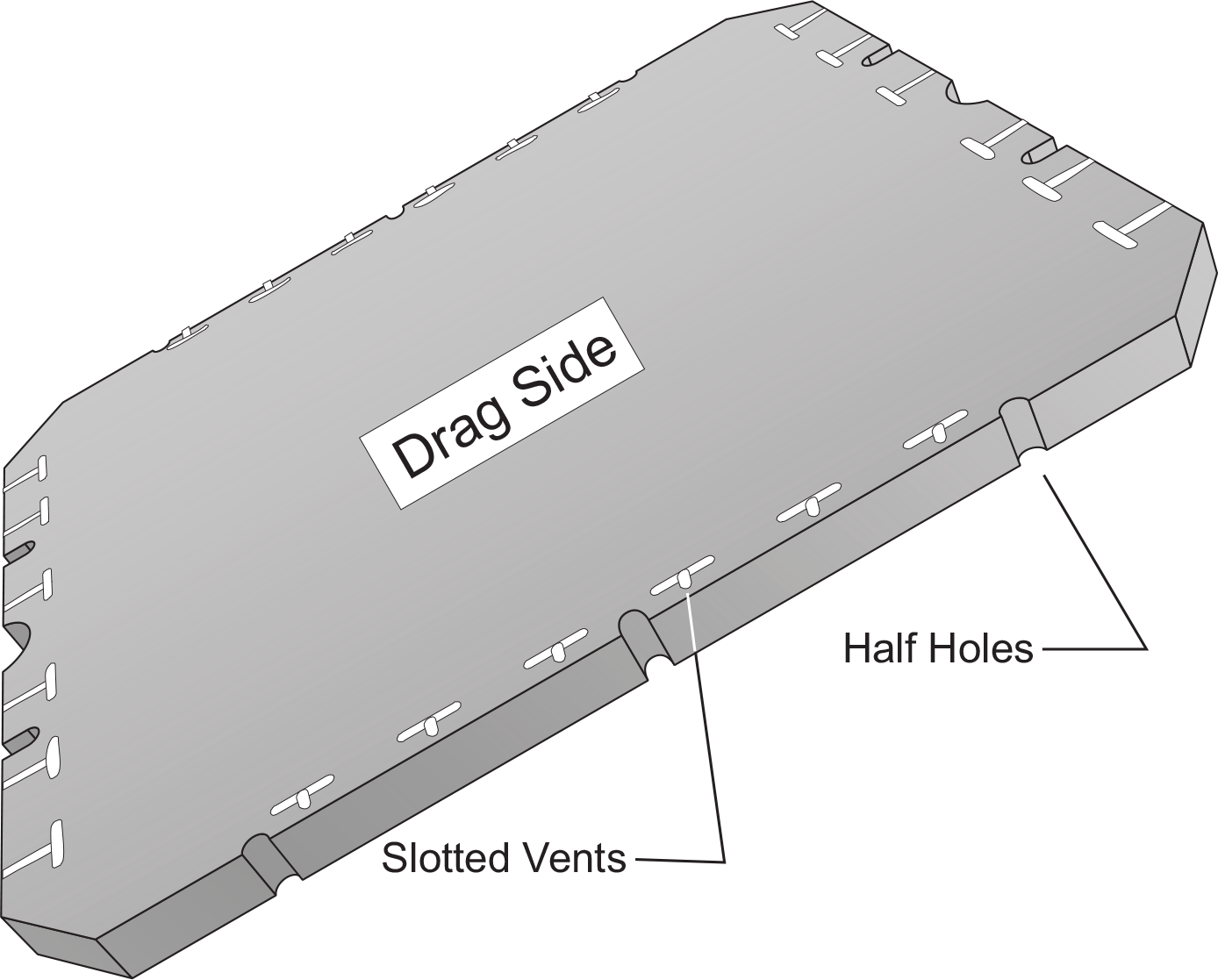

PATTERN PLATES: Slotted Vents and Half Holes

Hunter Precision Pattern Plates are a stable aluminum tooling plate, flat and parallel within .005 inch. The plates can be ordered with slotted mounting holes, which allow fast pattern changes, or with full size mounting holes. An optional Quick Change feature can be added to reduce pattern change times even further. All Hunter Precision Pattern Plates are vented to improve pattern draw and are available in all flask sizes. Optional Joint Locks are also available to reduce mold shift. The plates can be ordered with slotted or full size mounting holes.

The inventory of pattern plate options are illustrated in the following tables:


Hunter Model	Plate Thickness	Part Number
Hunter Model	Plate Thickness	With Vents	* Without Vents
HMP-10 (14" X 19")	5/8"	41655	63540
HMP-18 (18" X 20")	5/8"	41656	N/A
HMP-20 (20" X 24")	5/8"	41657	63544
HMP-20 (20" X 24")	3/4"	41658	63545
HMP-30 (24" X 30")	7/8"	41659	N/A
HMP-32 (30" X 32")	1"	41660	N/A

* Without Vents Not Illustrated - For G & H Machines Only

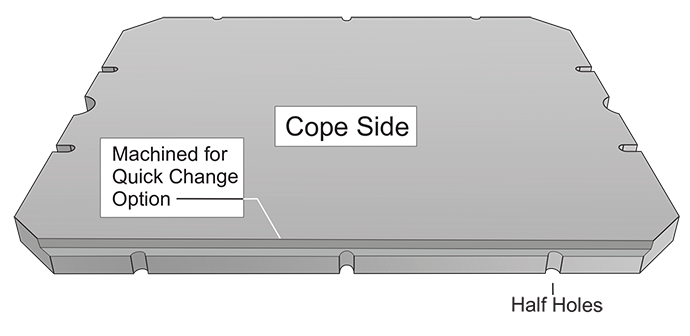

PATTERN PLATES: Slotted Vents and Half Holes, machined for Quick Pattern Change Option


Hunter Model	Plate Thickness	Part Number
Hunter Model	Plate Thickness	With Vents	* Without Vents
HMP-10 (14" X 19")	5/8"	43080	63541
HMP-20 (20" X 24")	5/8"	43083	63546
HMP-20 (20" X 24")	3/4"	43087	63547
HMP-20 (20" X 24") (Special Order)	1.0"	*****	N/A

* Without Vents Not Illustrated - For G & H Machines Only

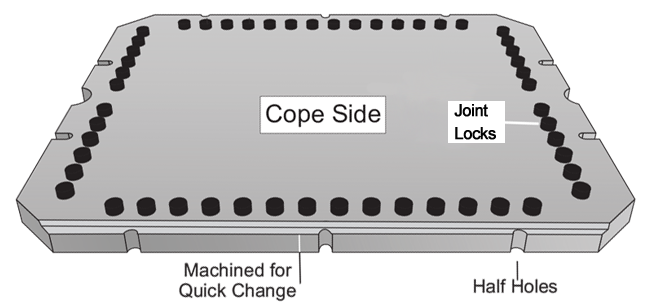

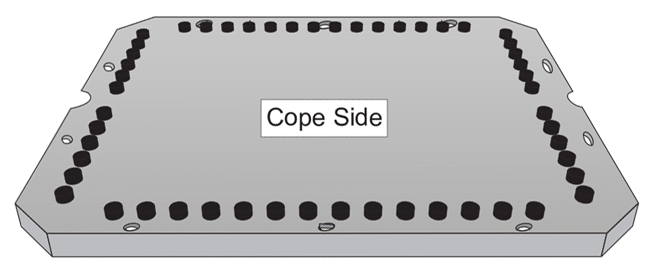

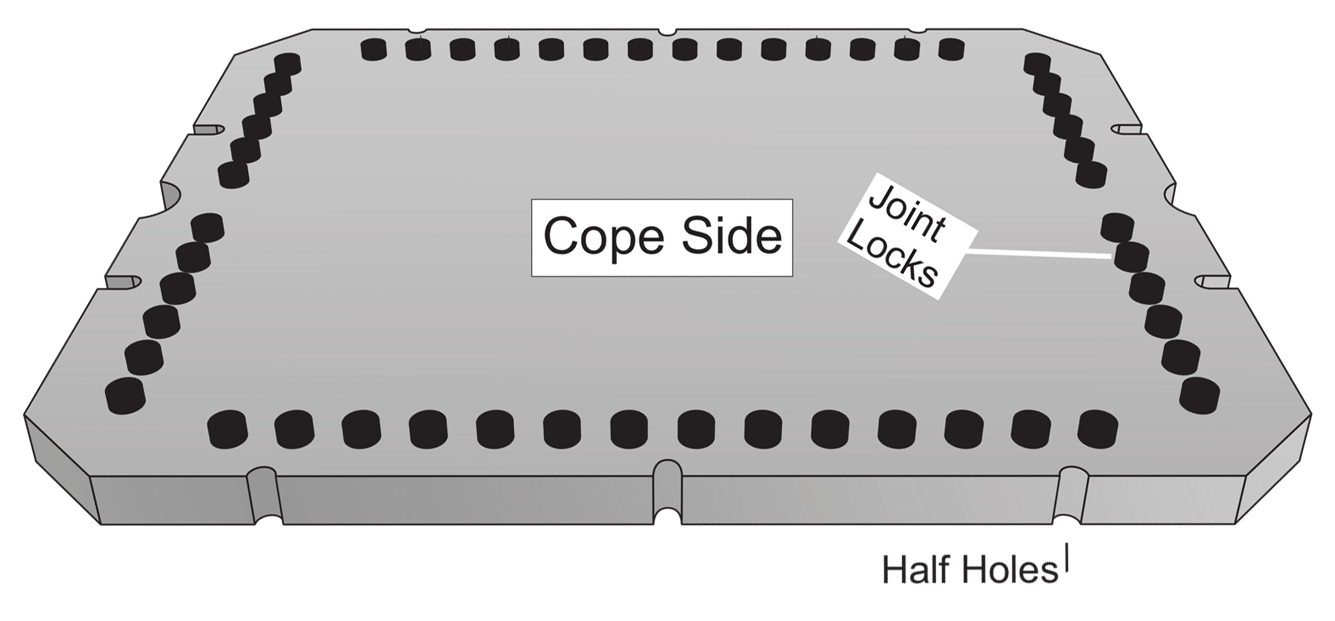

PATTERN PLATES: Slotted Vents, Half Holes and Joint Locks


Hunter Model	Plate Thickness	Part Number
Hunter Model	Plate Thickness	With Vents	* Without Vents
HMP-10 (14" X 19")	5/8"	41649	63543
HMP-18 (20" X 24")	5/8"	41650	N/A
HMP-20 (20" X 24")	5/8"	41651	63550
HMP-20 (20" X 24")	3/4"	41652	63551
HMP-20 (20" X 24") (Special Order)	1.0"	46980	N/A
HMP-30 (24" X 30")	7/8"	41653	N/A
HMP-32 (30" X 32")	1.0"	41654	N/A

* Without Vents Not Illustrated - For G & H Machines Only

PATTERN PLATES: Slotted Vents, Joint Locks and Full Size Mounting Holes


Hunter Model	Plate Thickness	Part Number
Hunter Model	Plate Thickness	With Vents	* Without Vents
HMP-10 (14" X 19")	5/8"	46490	69199
HMP-20 & XL2024	5/8"	46492*	68799
HMP-20 & XL2024	3/4"	46511*	68800
HMP-26 (20" X 26")	5/8"		80619
HMP-26 (20" X 26") (Special Order)	5/8"		80620**
XL2430	1.0"		84147

* Not used on the XL2024
** Special pattern plate without mold locks and slotted vents.

PATTERN PLATES: Slotted Vents and Joint Locks, Machined for Quick Pattern Change Option


Hunter Model	Plate Thickness	Part Number
Hunter Model	Plate Thickness	With Vents	* Without Vents
HMP-10 (14" X 19")	5/8"	43081	63542
HMP-20 (20" x 24")	5/8"	43085	63548
HMP-20 (20" x 24")	3/4"	43089	63549
HMP-20 (20" x 24") (Special Order)	1.0"	45888	N/A

* Without Vents Not Illustrated - For G & H Machines Only

MATCH SYSTEM KITS AND ACCESSORIES

The Hunter MATCH SYSTEM TM consists of three matched pairs of precision gage blocks installed on a toolplate pattern. Any pattern equipped with the MATCH SYSTEM TM becomes a test pattern. This system is capable of measuring precisely the alignment of the cope and drag after the mold is closed and pushed out of the machine.

Illustration	Description	HMP-10/18 Part No.	HMP-20 Part No.	HMP-30/32 Part No.
	Gage Block Set: Pattern Plates with Joint Locks (3 sets required per pattern plate)	37122	37123	37124
	Gage Block Set: Pattern Plates without Joint Locks (3 sets required per pattern plate)	37123	37123	37131
	Match Assurance Indicator and Calibration Block	37125	37125	37125
	Drill Fixture: Pattern Plates Without Joint Locks or Non-Hunter Pattern Plates	64842	64842	64842
Start-Up Kit - Includes: 3 Cope and Drag Gage Block Sets 1 Match Assurance Indicator and Calibration Block	Pattern Plates with Joint Locks	37126	37126	37126
	Pattern Plates without Joint Locks	37130	37130	37130

Table of Contents

Auxiliary Parts for Hunter Matchplate Molding Machines and Mold Handling Systems

BASINS

1. The New Ultra-Clean Basin Former Design:

2. The Sprue Slug Ejector Design:

3. The Conventional Design:

ULTRA-CLEAN BASIN FORMER SUPPLIES: HMP-10 & 20, XL1419, XL2024, HLM10 & 20

Item No.

Hunter Part No.

Description

Quanity Required

HMP-10XL1419HLM-10

HMP-20XL2024HLM-20

ULTRA-CLEAN BASIN FORMER SUPPLIES: HMP-32 & XL2024

Item No.

Hunter Part No.

Description

Quanity Required

XL2024HLM-20

HMP-32HLM-30

SPRUE SLUG EJECTOR DESIGN: HMP-10 & 20

Item No.

HunterPart No.

Description

Quanity Required

HV-10

HV-20

HLH-10HMH-210

HLH-20HMH-220

SPRUE SLUG EJECTOR DESIGN: HMP-32

QUICK CHANGE BASIN SUPPLIES FOR NON-C, C, D, E, G & H

Item No.

HunterPart No.

Description

Quanity Required

HV-32

HLH-32 HMH-32

CONVENTIONAL DESIGN

Illustration

Description

Recommended Quanity for 1st Order

Part No.

HMP10XL1419HLM-10

HMP-18/20XL2024HLM-20

HMP-30/32XL2430HLM-30

Deep Basin with Flat Side

CONVENTIONAL DESIGN: INSERTS

ILLUSTRATION

Description

Recommended Quanity for 1st Order

Part No.

HMP10XL1419HLM-10

HMP-18/20XL2024HLM-20

HMP-30/32XL2430HLM-30

POURING BASIN ARRANGEMENT: Shallow & Deep Basin

POURING BASIN ARRANGEMENT: Deep Basin & Basin Liner

SPRUES

Sprue Diameter

Recommended Quanity for 1st Order

HMP-10XL-1419HLM-10

HMP-18 HMP-20XL-2024HLM-20

HMP-26HLM-26

HMP-30HMP-32XL-2430HLM-30

Part No.

Sprue Diameter

Recommended Quanity for 1st Order

HMP-10XL-1419HLM-10

HMP-18 HMP-20XL-2024HLM-20

HMP-26HLM-26

HMP-30HMP-32XL-2430HLM-30

Part No.

SQUEEZE BOARD ACCESSORIES:

Illustration

Description

Recommended Quanity for 1st Order

HMP-10 XL1419HLM-10

HMP-18 HMP-20 XL2024HLM-20

HMP-26HLM-26

HMP-30HMP-32 XL2430HLM-30

Part No.

HMP-10
XL1419
HLM-10

HMP-20
XL2024
HLM-20

XL2024
HLM-20

HMP-32
HLM-30

Hunter
Part No.

HLH-10
HMH-210

HLH-20
HMH-220

Hunter
Part No.

HLH-32
HMH-32

HMP10
XL1419
HLM-10

HMP-18/20
XL2024
HLM-20

HMP-30/32
XL2430
HLM-30

HMP10
XL1419
HLM-10

HMP-18/20
XL2024
HLM-20

HMP-30/32
XL2430
HLM-30

HMP-10
XL-1419
HLM-10

HMP-18
HMP-20
XL-2024
HLM-20

HMP-26
HLM-26

HMP-30
HMP-32
XL-2430
HLM-30

HMP-10
XL-1419
HLM-10

HMP-18
HMP-20
XL-2024
HLM-20

HMP-26
HLM-26

HMP-30
HMP-32
XL-2430
HLM-30

HMP-10
XL1419
HLM-10

HMP-18
HMP-20
XL2024
HLM-20

HMP-26
HLM-26

HMP-30
HMP-32
XL2430
HLM-30

HMP-10
XL1419
HLM-10

HMP-18
HMP-20
XL-2024
HLM-20

HMP-26
HLM-26

HMP-30
HMP-32
XL2430
HLM-30
