OUR NEWEST INNOVATION - HUNTER'S EXTERNAL CORSETTER

Hunter's New External Coresetter

The production rate for time consuming cored jobs is significantly improved by overlapping the functions of coresetting and mold making.

FEATURES

  • Mold indexer (in/out motion) operates using a Geneva drive mechanism powered by a pneumatic rotary actuator. Rotating table operates using a Geneva drive mechanism powered by a motor-driven gear reducer.
  • Each transfer pallet utilizes mold lock pins that maintain the drag mold, bottom board and mold pallet alignment during movement in and out of the machine.
  • Rolling base provides the ability to swing the core set station out of the way when not in use.
  • Can be used with any Hunter matchplate molding machine in the HLM or XL series.

FEATURED PRODUCT

FIG.1 INSPECTION, BLOW OFF AND CORESETTING
FIG.1 INSPECTION, BLOW OFF AND CORESETTING

    BENEFITS

  • All controls are integrated so that the molding machine and external core setter function as a single unit.
  • The HEC brings the drag mold out of the matchplate molding machine for manual coresetting while the next mold is being made.

    •

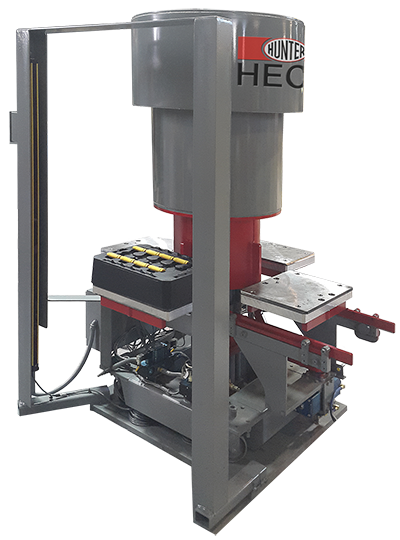

HUNTER'S EXTERNAL CORESETTER: HEC

HUNTER'S EXTERNAL CORESETTER: HEC

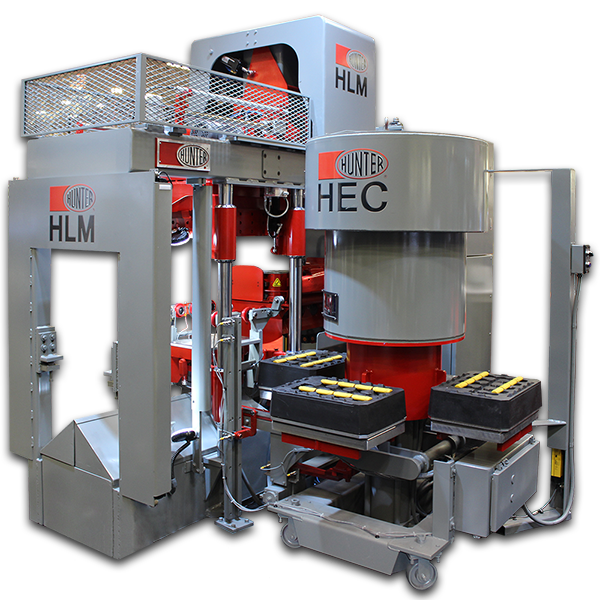

CAD Illustration of Matchplate Molding Machine and External Unit functioning as a single unit.
FIG. 2 PALLET INDEXING IN/OUT SQUEEZE STATION

    ADVANTAGES

  • Multiple and complex cores can more easily be set accurately.
  • Minimizes the worker’s back stress by eliminating awkward postures while setting cores.
  • Ergonomic positioning of the drag mold is personalized to the worker’s individual body height.
  • Improves production rates by overlapping cycles.
  • Service and support that our customers appreciate and expect from Hunter.
  • Designed to withstand harsh foundry conditions.

THE HUNTER EXTERNAL CORESETTER CAN BE USED WITH THE
HLM SERIES OR THE XL SERIES MATCHPLATE MOLDING MACHINES

Hunter Linear Matchplate Molding Machine with doors

Hunter's HLM Matchplate Molding Machine Series

LEARN MORE...
Hunter's XL Matchplate Molding Machine Series

Hunter's XL Matchplate Molding Machine Series

LEARN MORE...
